The Role of Fluorspar in the Cement Industry

Introduction

The cement industry, as a fundamental pillar of construction and urban and industrial infrastructure development, produces millions of tons of clinker annually. It is also one of the highest consumers of energy and natural gas in the industrial sector. Under these circumstances, optimizing cement production to reduce energy consumption, increase efficiency, and lower environmental emissions has become increasingly important.

One technical solution gaining attention over recent decades is the addition of mineralizers or fluxes to the kiln feed. Among these, fluorspar (CaF₂), a mineral with unique chemical properties, plays a key role in lowering clinker formation temperature, facilitating thermal reactions, and reducing fuel consumption. However, this role remains unclear or underappreciated for many industry practitioners.

This article thoroughly addresses the following questions:

• Why is fluorspar used in cement?
• What impact does it have on the chemical process of clinker formation?
• How does it contribute to saving energy and fuel?
• What quantities and where is it used?
• Are there any limitations in its application?

‌‌

Why is Fluorspar Used in the Cement Industry?

Portland cement production relies heavily on the clinker firing process, during which raw materials such as lime, silica, alumina, and iron oxide are melted or semi-melted at about 1450°C to form key mineral phases like alite (C₃S) and belite (C₂S). This process requires large amounts of gas or fossil fuels and is both economically and environmentally costly.

Here, fluorspar (CaF₂) acts as a flux — a material that reduces the melting temperature of clinker phases and facilitates the firing reactions. Fluorspar chemically reacts in the kiln, especially with silica and calcium, forming compounds with lower melting points.

Main roles of fluorspar in this stage:

• Lowering clinker formation temperature

Fluorspar reduces reaction temperatures between CaO, SiO₂, and Al₂O₃, resulting in significant thermal energy savings.

• Increasing reaction speed and efficiency

Its presence accelerates formation of key phases like C₃S in shorter times.

• Reducing liquid phase viscosity in the kiln

Fluorspar creates a more fluid liquid phase, improving mixture homogeneity and uniform firing.

• Stabilizing final clinker phases and reducing chemical instability

Studies show CaF₂ decreases free CaO content and produces chemically uniform clinker.

Thus, fluorspar is not merely an additive but a strategic tool for improving energy efficiency, product quality, and process stability in cement manufacturing.

‌‌‌

Chemical Effects of Fluorspar on Clinker and Final Cement

Fluorspar, especially as fluorite (CaF₂), has measurable chemical effects on clinker formation when introduced into cement raw mixes. These effects reduce energy consumption and alter cement’s mineralogical structure and physical properties:

1. Reducing clinker phase formation temperature

Fluorspar lowers activation energy of reactions, enabling phases like alite (C₃S), belite (C₂S), and ferrite (C₄AF) to form 20–50°C below normal temperatures, directly cutting fuel use.

2. Increasing alite (C₃S) formation

Acting as a catalyst between lime (CaO) and silica (SiO₂), fluorspar raises C₃S proportion, improving early compressive strength (7-day strength) of cement.

3. Reducing free lime (CaO)

Fluorspar promotes more complete reactions, minimizing free lime which can cause durability issues, thus enhancing cement chemical stability.

4. Impact on final cement properties

Indirectly improves:

• Early compressive strength
• Reduced expansion due to free lime
• Better volumetric stability of clinker
• More uniform kiln firing, fewer thermal hotspots

Fluorspar thus acts as a smart chemical regulator, improving both cement quality and production stability when dosed appropriately.

‌‌‌‌‌‌

Impact of Fluorspar on Energy and Fuel Consumption in Cement Kilns

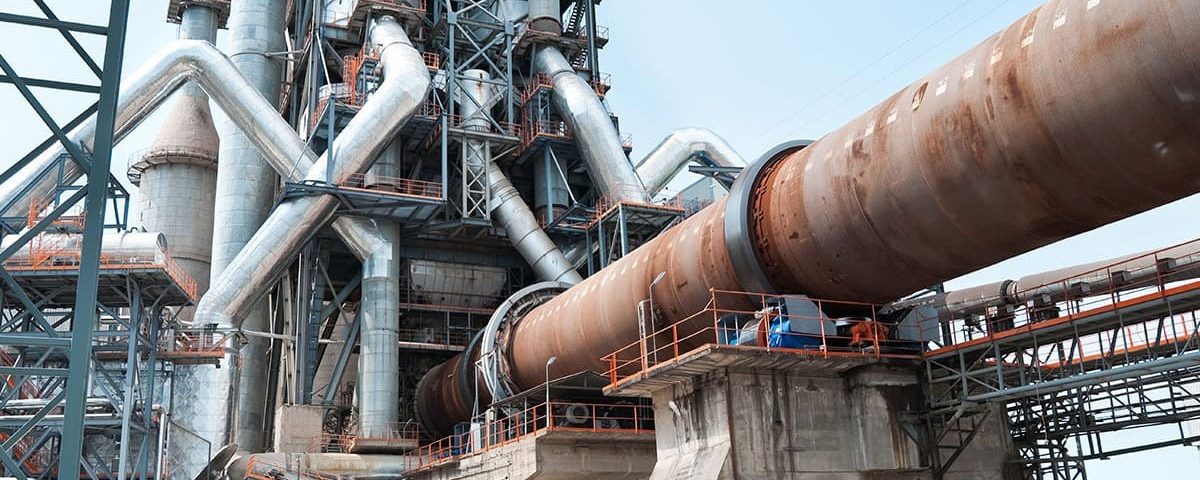

Clinker kilns are among the highest thermal energy consumers in heavy industry, operating at ~1400–1450°C and primarily fueled by natural gas, coal, or a combination.

Adding fluorspar (CaF₂) to the kiln feed can directly reduce gas consumption and energy costs:

1. Lowering clinker firing temperature

Studies show 0.3–0.5 wt.% fluorspar can reduce clinker phase formation temperatures by 20–50°C, significantly reducing gas use per ton of clinker.

2. Energy savings

Industrial reports indicate:

• Specific heat consumption dropped from ~3200 kJ/kg clinker to below 2900 kJ/kg in some plants.
• Equivalent to 8–12% fuel savings in many production lines.
• Roughly, each 1°C kiln temperature reduction saves 3–5 kcal/kg heat consumption.

3. Environmental benefits

• Reduced fuel leads to lower greenhouse gas emissions (CO₂, NOx, SOx).
• Critical given cement industry’s large CO₂ footprint.

4. Improved thermal efficiency

By enhancing liquid phase fluidity (flux effect), heat transfer and material reactions are optimized, increasing thermal efficiency.

Proper and controlled use of fluorspar is a cost-effective tool to cut gas consumption, boost energy efficiency, and lower cement plant costs without compromising product quality.

‌‌‌‌

Standard Fluorspar Consumption and Purity Specifications in Cement Production

Effective and economical fluorspar use requires correct dosing and physical-chemical compatibility with kiln conditions. Many cement plants, especially in developing countries, use medium-purity fluorite (60–70% CaF₂) which delivers good technical results if process control is maintained.

1. Optimal dosage

• Typically 0.2% to 0.5% by weight of kiln feed.
• For 60–70% purity fluorspar, dosing tends toward upper limits (0.4–0.5%) for sufficient effect.
• Exceeding this risks deposits in preheater or clinker quality loss.

2. Quality specifications

In cement use, thermal effectiveness outweighs highest purity needs:

Parameter	Acceptable Range
CaF₂ Purity	60% TO 70%
Fe₂O₃	Below 2%
Moisture	Preferably below 2%
Clay and Silts	Controlled, small amounts acceptable

This medium-purity “metallurgical” or “industrial” fluorspar is cost-effective and suitable for plants aiming to reduce energy consumption.

The use of fluorspar with 60% to 70% purity in the cement industry is completely common and technically accepted, provided that the dosage is properly controlled and impurities remain within acceptable limits. Currently, this approach is the most economical option for many cement plants in Iran and the surrounding region. (The use of fluorspar with purity below 55% is also possible but requires more detailed evaluation to ensure clinker quality does not deteriorate, and it must undergo thorough technical testing.)

‌‌

Examples of International Cement Plants Using Fluorspar

Fluorspar as a mineralizer has long been used by major global cement plants, especially in countries facing energy constraints or seeking fuel optimization. Usage is typically at low, targeted dosages with strict process control.

Examples:

• LafargeHolcim (USA):

Since the 1990s, a Michigan plant uses 0.5% medium-purity (70% CaF₂) fluorspar, lowering firing temperature by ~30°C and improving fuel efficiency by 7%.

• UltraTech Cement (India):

Uses local fluorite (65–75% purity) at 0.3% dosage in fuel-limited regions; reports energy savings and improved clinker composition.

• Akçansa Cement (Turkey):

Heidelberg Cement subsidiary utilizing 60–70% purity fluorspar from Iran and Azerbaijan to optimize preheater kilns.

• South China Cement Plants (Guangdong & Guangxi):

Commonly use up to 0.6% fluorite (65% purity) in kiln feed, especially in older kilns requiring fuel efficiency upgrades.

Cement plants in various countries—from the United States and India to Turkey and China—have been using fluorspar for years as an effective additive to reduce firing temperature and save energy. The key factor in all these cases is the use of low dosages, medium purity, and precise control of the thermal process.

‌‌‌‌‌

Limitations and Challenges of Fluorspar Use in Cement Industry

Despite benefits, fluorspar use requires technical and managerial caution to avoid process disruptions or product quality degradation:

1. Deposit formation and preheater blockages

• High doses or poor mixing can cause solid rings in preheaters or kiln inlets, blocking material flow and causing production stoppages.

2. Increased moisture or ash from low-quality fluorspar

• Low-purity fluorite may contain excessive clay, silts, or moisture, affecting feed composition, thermal efficiency, or clinker structure.

3. Feed chemical imbalance

• Uncontrolled addition can disrupt CaO/SiO₂ or C₃S/C₂S ratios, increasing free lime or lowering cement strength.

4. Monitoring and control costs

• Safe, effective use demands continuous chemical analysis, kiln temperature control, and product quality checks.

5. Sensitivity to fluorspar quality fluctuations

• Variable purity from different mines complicates feed formulation, increasing process complexity.

Thus, fluorspar use must be scientific, controlled, and tailored; improper application raises technical and economic risks.

‌‌‌‌‌

Conclusion and Practical Recommendations for Cement Plants

Fluorspar, especially medium-purity fluorite, has long been recognized as a beneficial additive in cement. Its main roles are lowering clinker formation temperature, enhancing thermal reaction efficiency, and reducing fuel consumption—proven by many leading global plants.

For plants facing energy constraints or rising fuel costs, controlled fluorspar addition offers an economical and feasible solution.

Summary of benefits:

• Up to 50°C clinker firing temperature reduction
• 8–12% energy and fuel savings
• Increased useful clinker phases like alite (C₃S)
• Reduced free CaO and improved chemical uniformity
• Lower environmental emissions from fuel savings

Practical recommendations:

1. Suggested dosage: 0.2%–0.5% by clinker feed weight
2. Suitable purity: 60%–70% CaF₂ meets economic and technical needs
3. Precondition: Quality control lab for feed and clinker analysis
4. Implementation: Start with pilot scale, then scale up
5. Critical: Ensure consistent fluorspar quality (purity and moisture)

Final message:
Used properly, fluorspar is not only an economical additive to reduce costs but also a factor for improving cement product quality and environmental performance. It offers valuable innovation and efficiency gains for cement plants striving for industrial excellence.
